Eaton 5PXEBM48RTG2 research review: quote a matched 5PX G2 battery system

The accessory solves a duration requirement

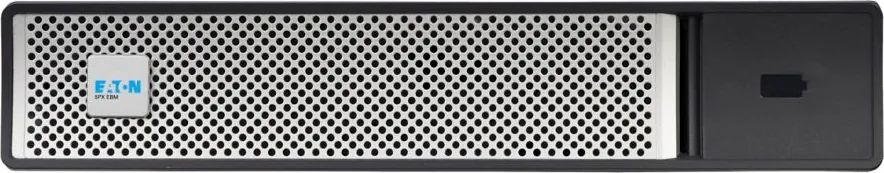

Eaton 5PXEBM48RTG2 is an external battery module for selected 5PX G2 UPS models. Its buying case begins when a qualifying host already has enough inverter capacity but needs a longer supported battery window. That is different from replacing worn internal batteries and different from upgrading the maximum supported load. Identify which of those problems exists before ordering an external enclosure, because the wrong diagnosis can add hardware without solving the operating requirement.

Write the intended outage task in measurable terms. The system may need to finish a shutdown, preserve a network service until another source is available or meet a defined continuity interval. Include the real supported watt load and the network components needed for that task. A battery module cannot supply a useful duration estimate by model number alone; the estimate belongs to the exact host, load and installed cabinet count.

Check the G2 host list rather than the Eaton brand

The current exact-model page lists 5PX1000RTG2, 5PX1000RTNG2, 5PX1500RTG2, 5PX1500RTNG2 and 5PX1500HRTG2 among the compatible hosts. The complete suffix matters. A similarly named older 5PX, another battery voltage or a different UPS family should not be treated as supported because the enclosure uses a familiar connector or the same manufacturer logo. Keep the host serial and complete model with the compatibility record.

For the 5PX1500RTG2 already covered in this library, Eaton's North American technical information documents a matched 5PXEBM48RTG2 path and support for up to four compatible modules. Verify the permitted configuration in the manual applicable to the actual host. The maximum number is a configuration limit, not a recommendation to install every module. The chosen count should meet the duration requirement with a justifiable footprint and maintenance scope.

Read 48 V as a matched system description

Eaton identifies this as an external 48 V sealed lead-acid battery pack. That description does not make it a general 48 V source for unrelated equipment. Approved host compatibility includes more than nominal voltage: the connector arrangement, battery management, configuration recognition, charging instructions and permitted cabling all belong to the documented system. Avoid selecting a substitute by voltage or cabinet appearance without explicit manufacturer support.

The host's real-power ceiling remains in force after expansion. A 5PX1500RTG2 still has its documented 1,440 W output qualification in the relevant US configuration; adding this module does not turn it into a higher-output UPS. If future equipment exceeds that limit, a different host selection is needed. Keeping capacity and duration in separate columns makes that boundary clear to both the person approving the load and the person comparing battery quotes.

Reserve the full enclosure and service envelope

The module uses 2U and has a stated weight of 61.3 lb on Eaton's exact page. The listed package includes an external battery cable, rack-mounting hardware, tower support stands and a quick-start guide. Confirm the actual offered bundle and the installation orientation. Some product fields describe dimensions in a different orientation, so use the mechanical instructions for the intended rack arrangement instead of assuming every height field is a rack-height measurement.

Add usable depth, cable access and a removal route to the rack plan. Several battery enclosures can consume meaningful space below the host, and the service team needs to reach them without disturbing unrelated equipment. Compare the complete installation against the required cabinet support and handling process. Reserving only the UPS position on a drawing can make a future expansion option unusable even when the electrical compatibility is correct.

Ask for runtime and recovery information for the actual configuration

Use Eaton's runtime resource at the measured supported watts and the chosen number of modules. Retain the configuration with the result. A half-load figure from another UPS or a claim of several hours without a load value cannot establish suitability. The site acceptance exercise should show that the actual shutdown or continuity procedure fits the planned window; this review does not claim to have discharged the module or verified an endurance figure.

Recharge, inspection and future battery replacement should be considered across the whole installed system. Record module identities and service dates rather than treating an expanded battery arrangement as a single anonymous accessory. Shortlist 5PXEBM48RTG2 when the exact G2 host is supported, the documented configuration meets duration and the physical ownership plan is practical. Skip it when the real problem is excessive host load, an unsupported UPS family or missing space for the additional cabinet.

A staged 5PX G2 expansion example

Consider an existing 5PX1500RTG2 whose approved workload is recorded at 900 W. The rack owner lengthens the shutdown procedure without adding equipment. An external 5PXEBM48RTG2 configuration is a relevant question because the change concerns duration while the host watt ceiling is unchanged. Request Eaton's runtime information at 900 W for the candidate cabinet counts and compare each result with the actual procedure. This example does not supply or predict the resulting minutes.

Suppose a different project adds enough equipment to require 1,500 W. The same external module cannot make the existing 1,440 W host qualification sufficient. That project needs another host assessment, regardless of how much battery energy is proposed. The distinction prevents the phrase battery upgrade from being used to approve a load upgrade. A purchasing request should state whether it addresses duration, replacement of depleted components or a higher supported equipment demand.

For the duration-only case, reserve the specific 2U position and cable route for the selected enclosure. Ask the installer whether the existing rack support arrangement and service access are suitable for the documented module weight. When more than one module is proposed, show every enclosure on the elevation. A maximum permitted count of four on the relevant host does not imply that a cabinet has the physical capacity or service layout for all four.

Check receiving details that are specific to this accessory: the label should identify 5PXEBM48RTG2, the external battery connection components should match the package, and the rack or tower hardware should suit the intended orientation. Do not substitute an older 5PX module because it is also advertised as 48 V. If the seller offers another suffix, ask Eaton to establish the exact host compatibility before accepting the change.

After installation, retain the host identity, module count and manufacturer curve used for the decision. The maintenance record should distinguish each external enclosure from the host's internal batteries. A future load addition or battery replacement can then be reviewed against the configuration that was actually commissioned. This review has no independent discharge, recharge or longevity measurements; its recommendation is that a supported module is useful when a specific duration requirement and an operable physical installation both justify it.

Sources and research basis

• Eaton 5PXEBM48RTG2 exact module specifications and compatible hostsPrimary documentation · checked 15 October 2026
• Eaton 5PX G2 North American technical specificationsPrimary documentation · checked 15 October 2026
• Eaton 5PX G2 advanced user guidePrimary documentation · checked 15 October 2026

Recommendations interpret the linked documentation. We have not physically tested this equipment and claim no original runtime, acoustics, switching or efficiency results. Report a correction.
